WHAT IT IS
This is not a projector that plays cartoons. It is a story machine that talks with the child and writes the book它不是一台放动画片的投影机，是一台会跟孩子对话、还能生成绘本的故事机

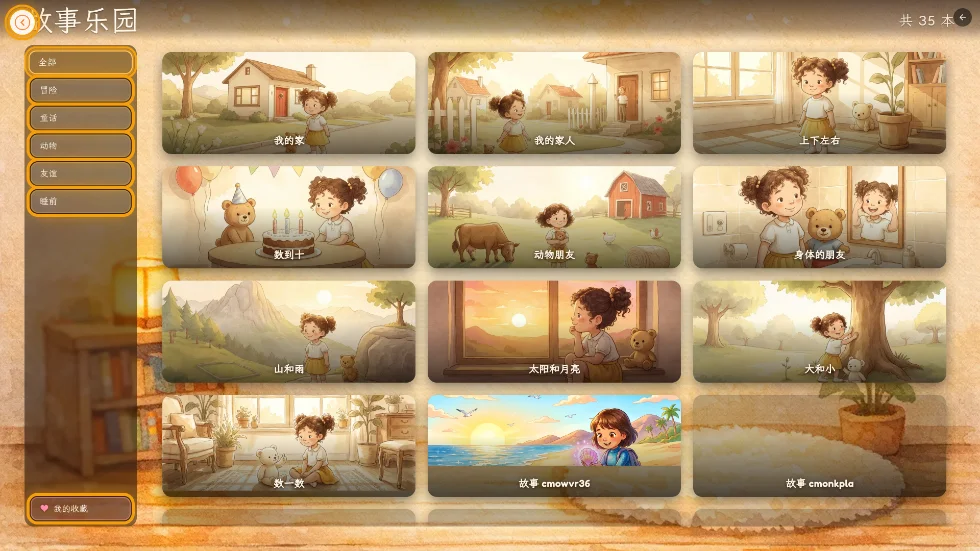

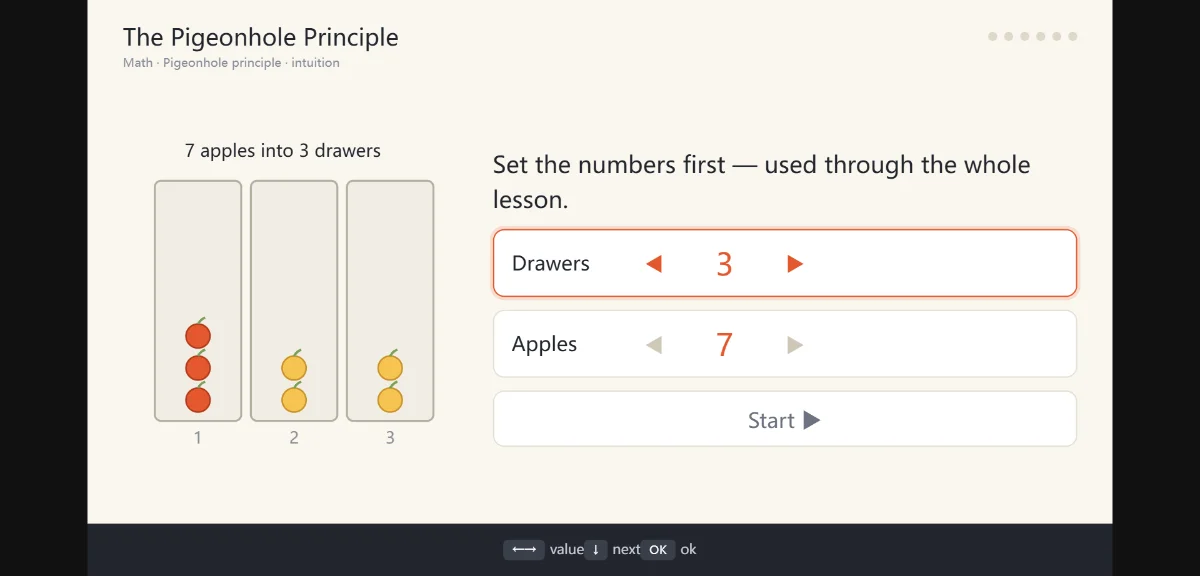

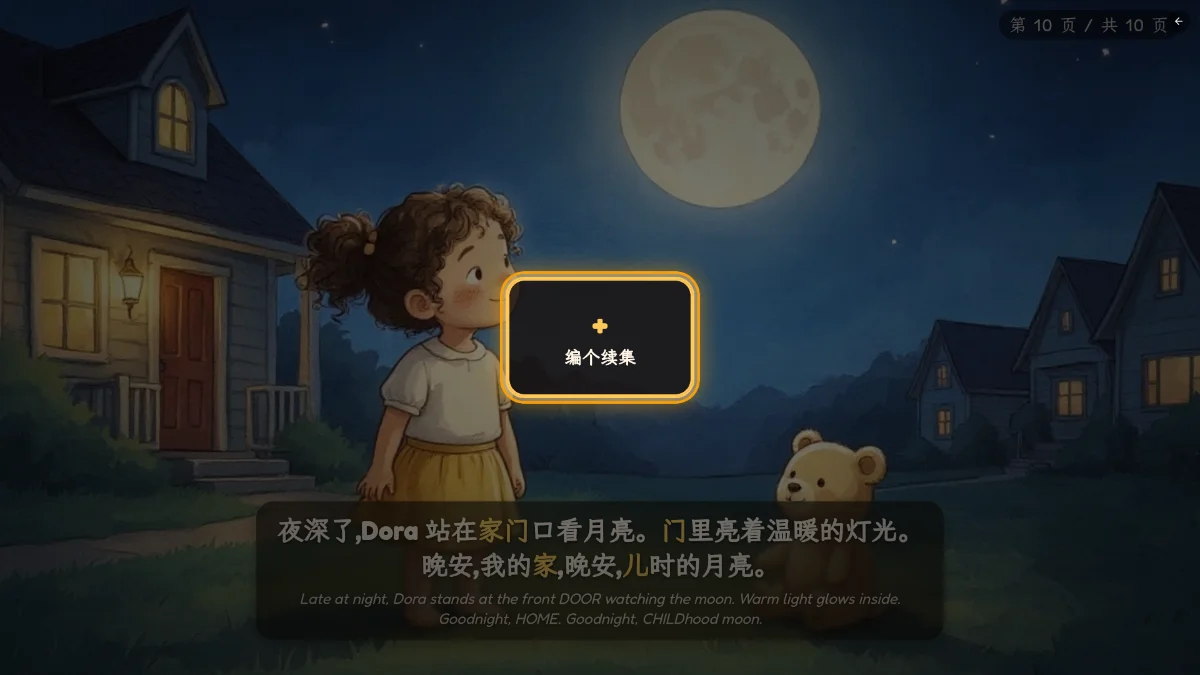

A child says an idea; the device generates a picture book of their own on the spot and reads it on the wall. After that come literacy, lessons and bilingual reading.孩子说一个想法，它现场生成一本属于他自己的绘本，投在墙上讲给他听。讲完还能识字、上课、听双语。
WHERE IT LIVES
The half hour before bed, the screen moves from hand to wall睡前半小时，屏幕从手里挪到墙上

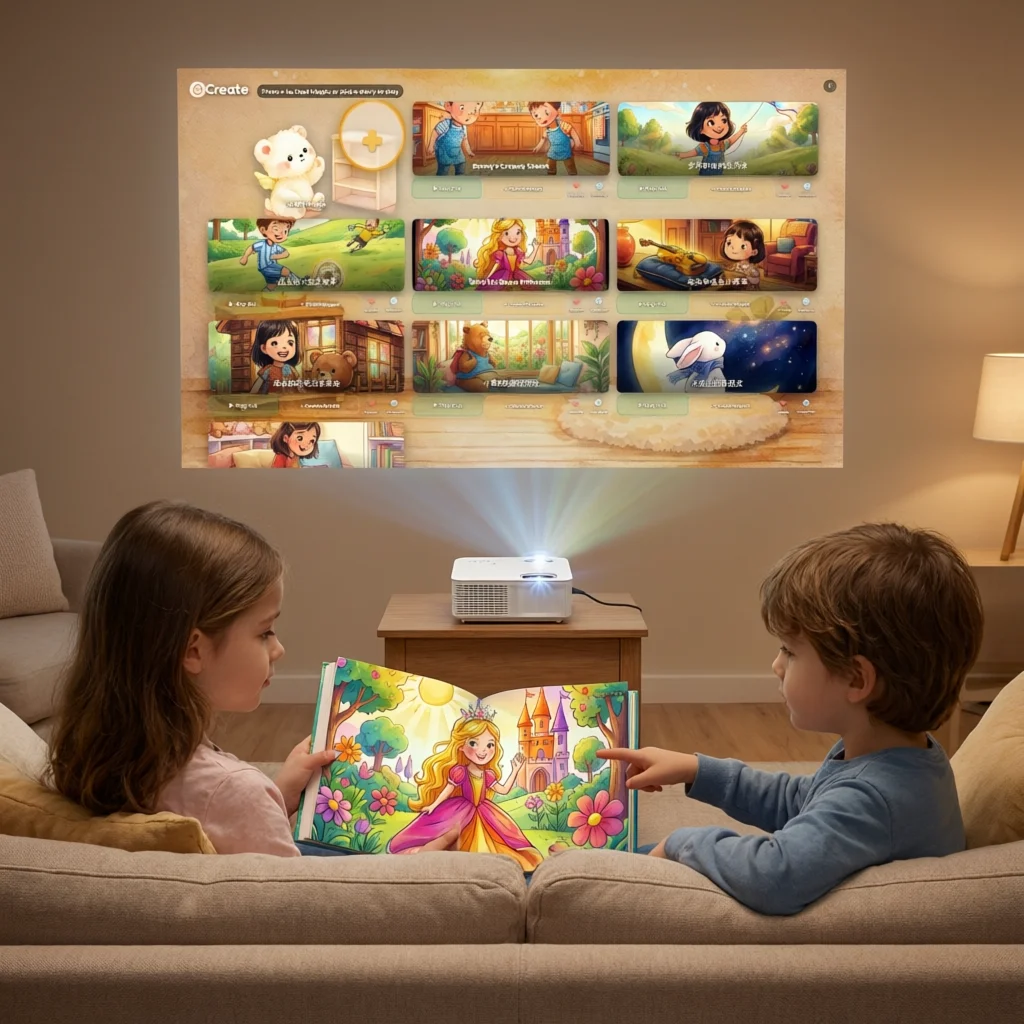

On the wall · reading together投墙 · 亲子共读
A big image, so the child is not hunched over a small screen.画面大，孩子不用低头盯着小屏幕。

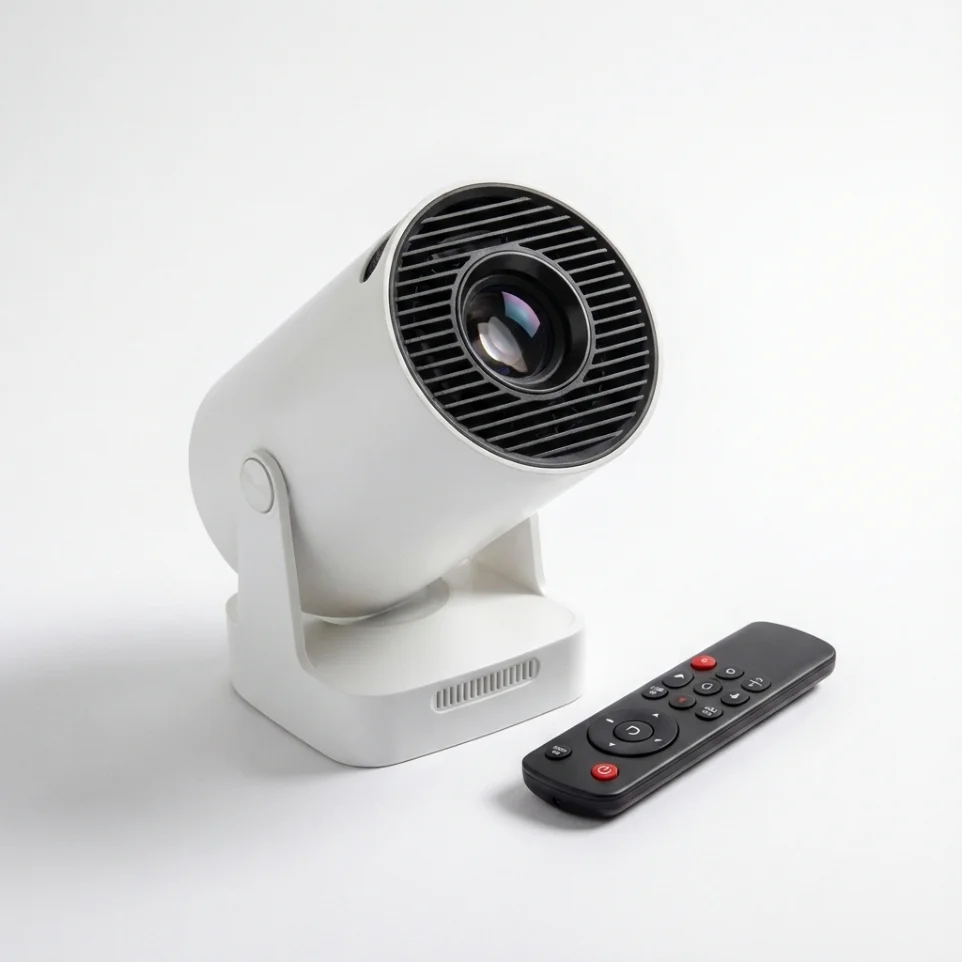

INDUSTRIAL DESIGN

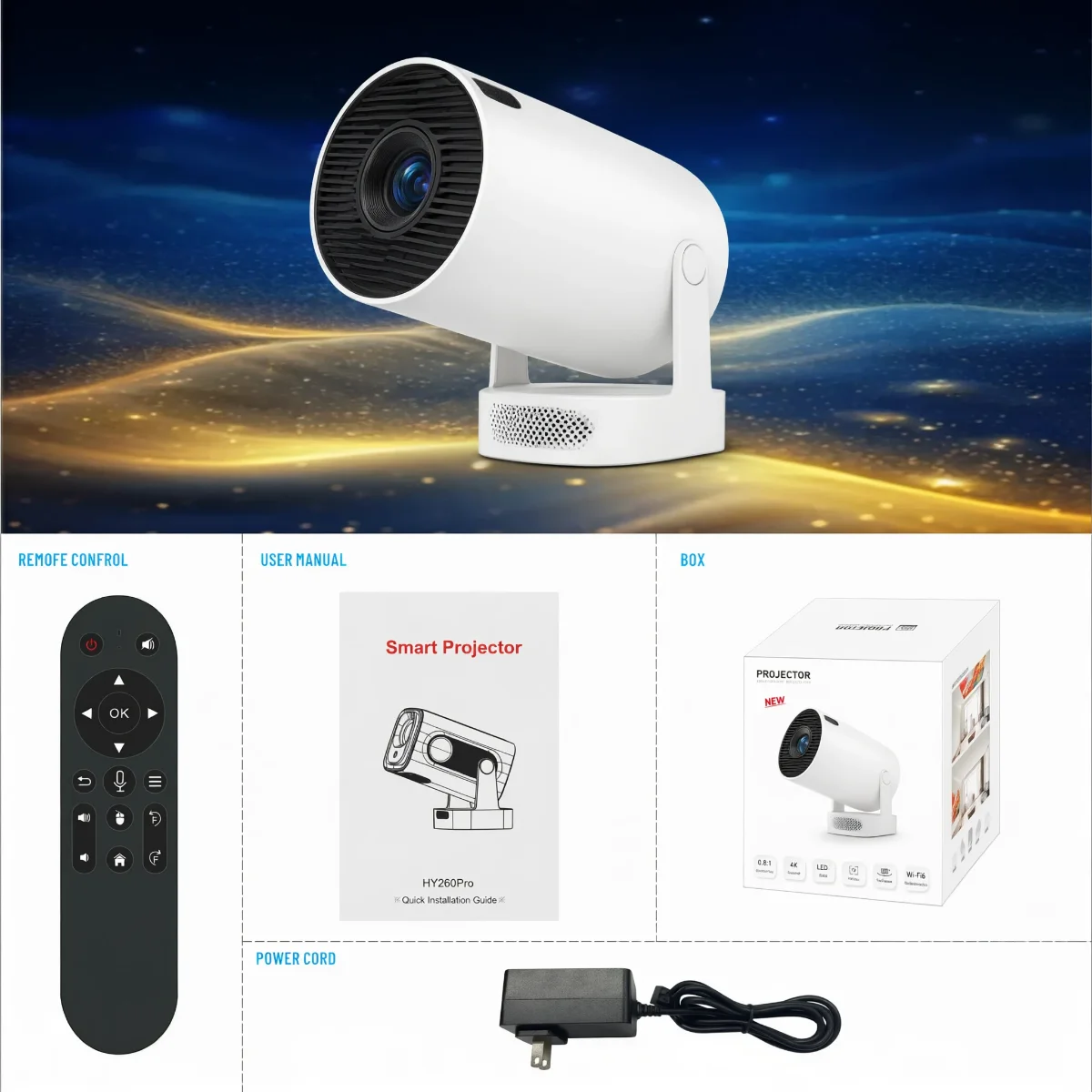

Design and packaging外观与包装

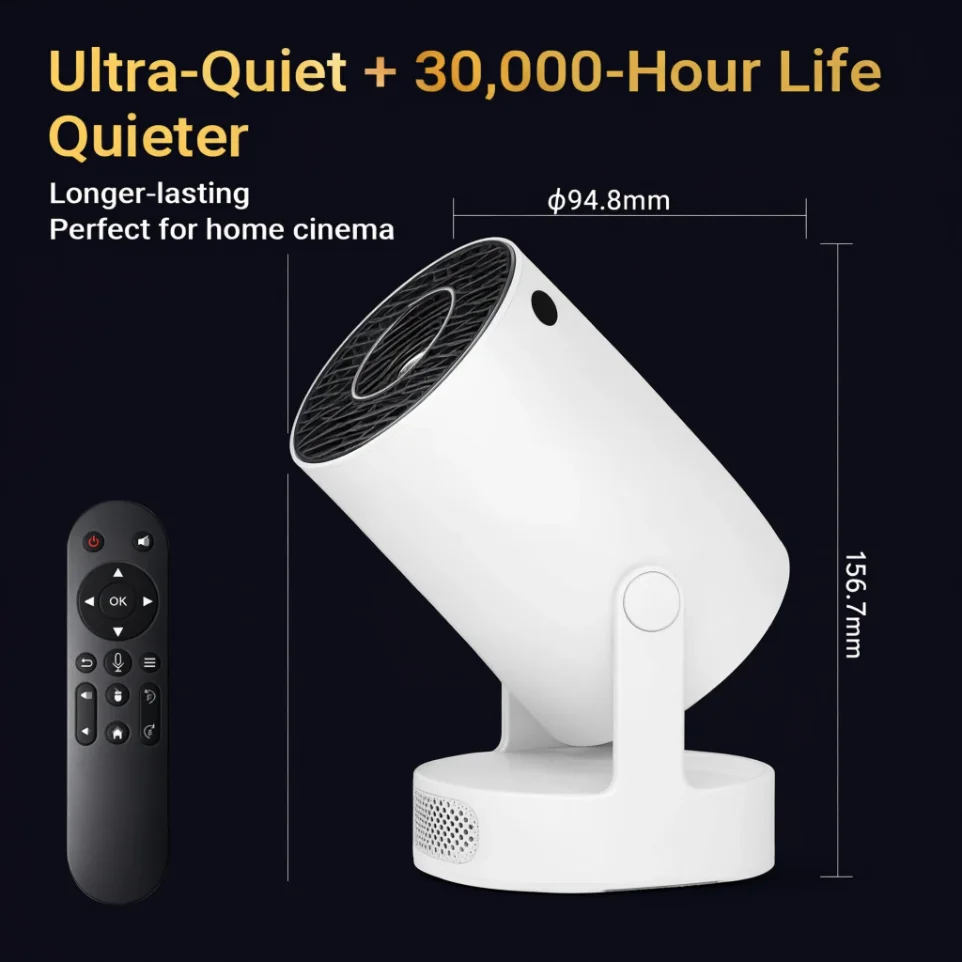

Body φ94.8 × 156.7 mm · ships in a gift box机身 φ94.8 × 156.7 mm · 礼盒包装出货
TWO KEY FEATURES
Projects at any angle, connects to any screen投得到任何角度，也接得上任何屏

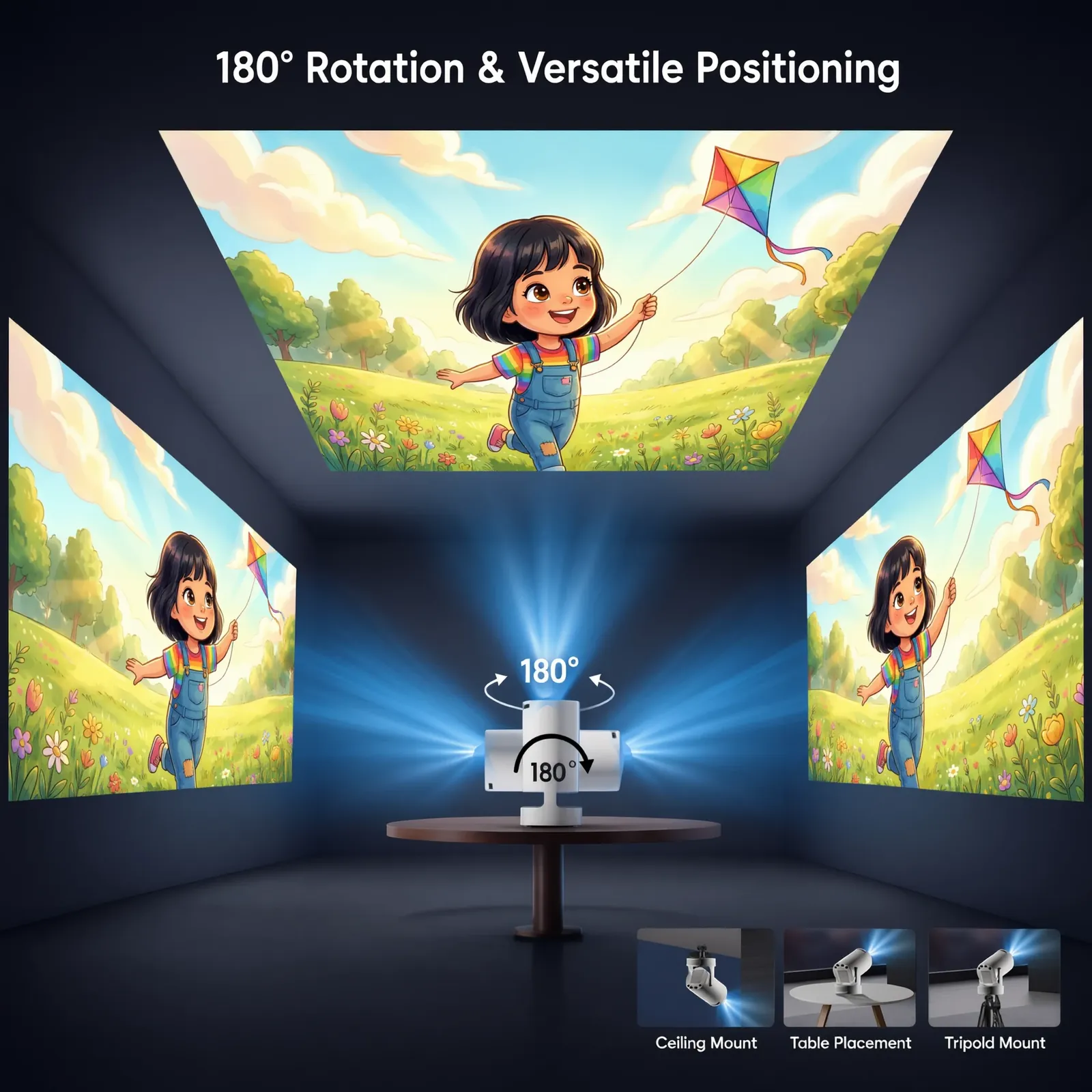

01 · 180° ROTATION
180° two-way rotation180° 双向旋转
The rotation mechanism is inside the body, so it projects onto a wall, a ceiling or any angle in between. Hang it, set it on a table or mount it on a tripod — no stacked books, no bracket fiddling.机身内置旋转结构，墙面、天花板、任意角度都能投。吊装、放桌面、上三脚架都行，不用垫书本、不用调支架。

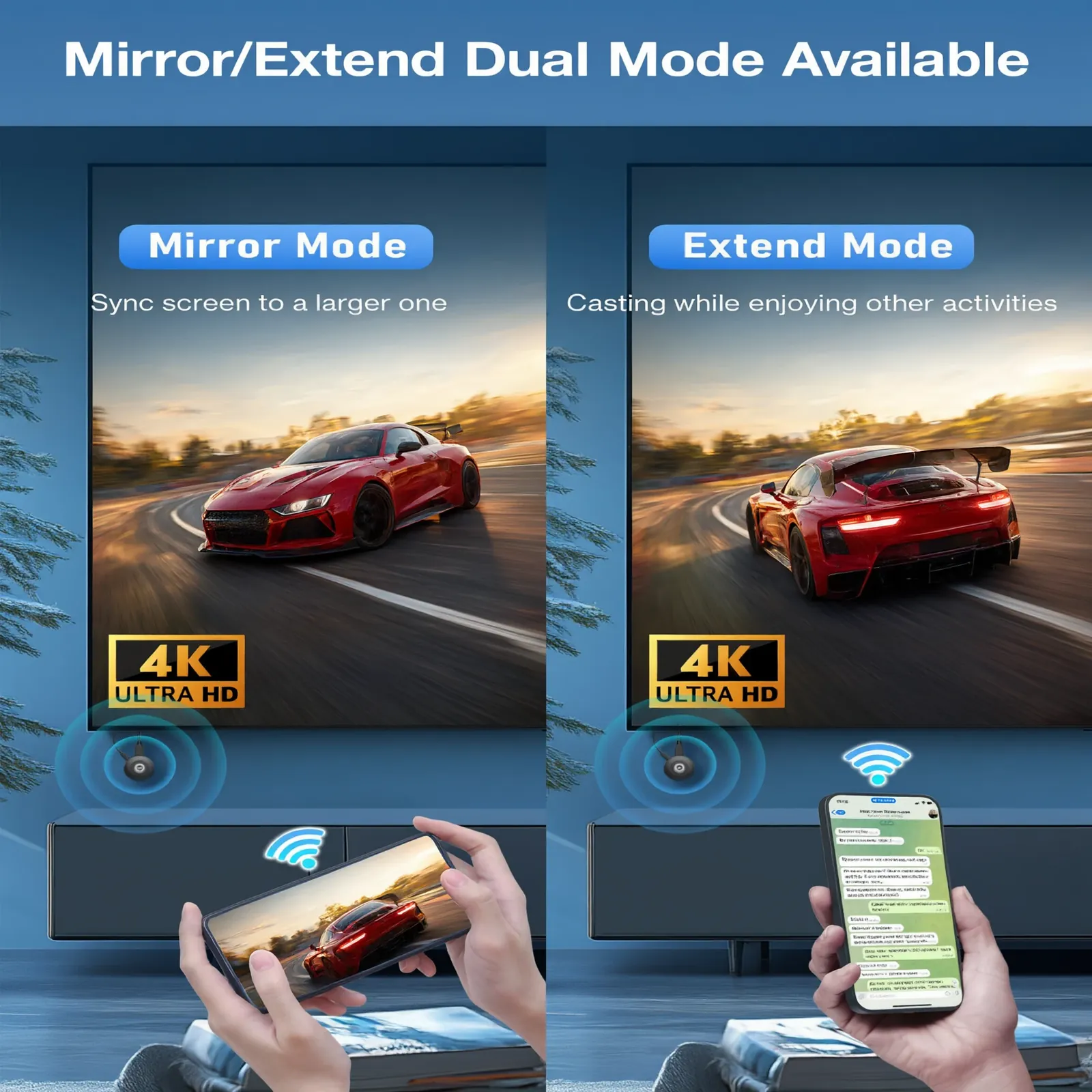

02 · MIRACAST
Miracast wireless castingMiracast 无线投屏
Mirror and extend modes are both supported. Mirror puts the phone screen on the big picture; extend lets the phone stay usable while casting. iOS and Android both connect, with no app to install.支持镜像与扩展双模式：镜像把手机画面同步投大屏，扩展模式下投屏的同时手机还能干别的。iOS 与安卓都能连，不用装 App。
NOT ONLY FOR KIDS
When the child goes to bed, it is the family screen孩子睡了之后，它就是全家的屏幕

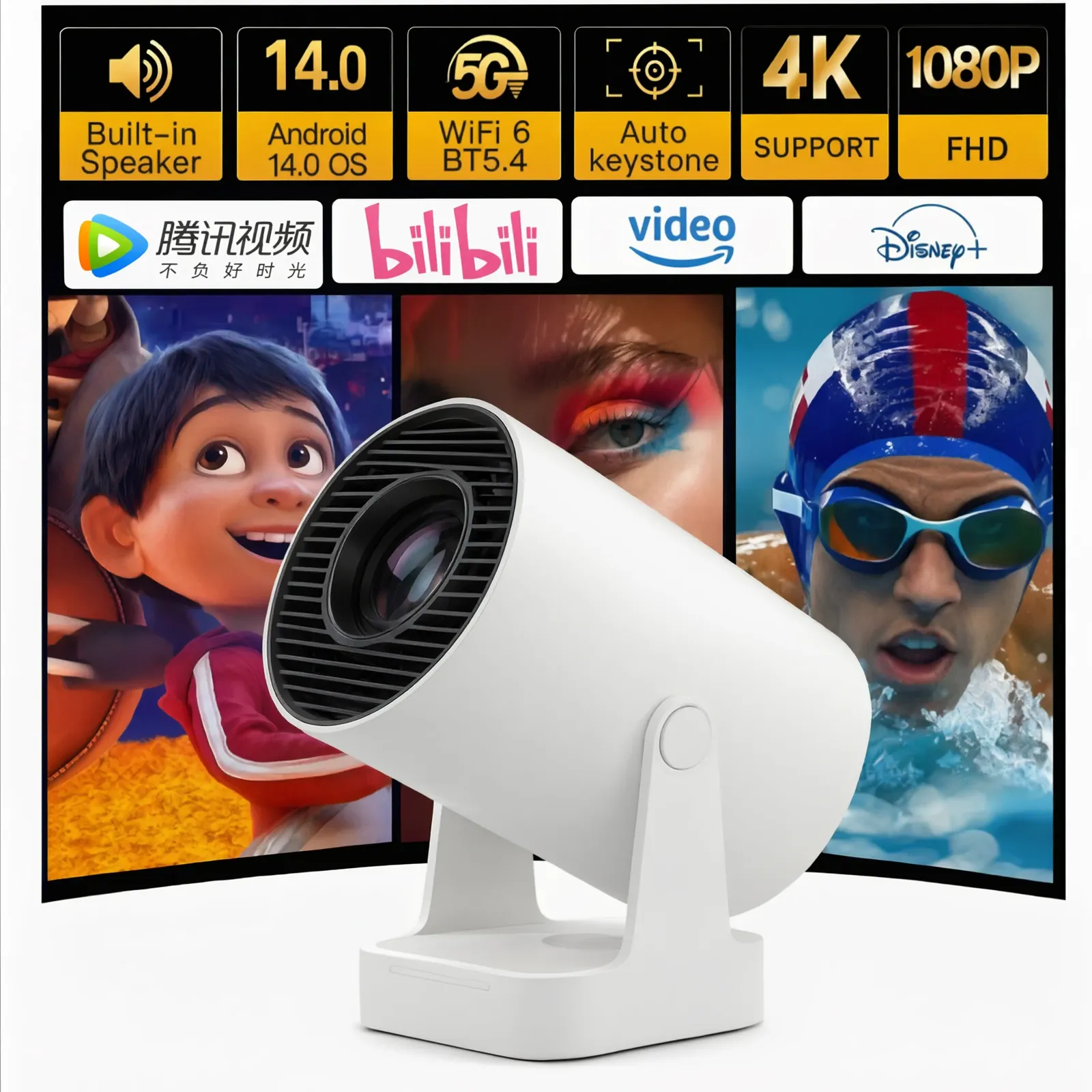

The same body runs a full Android 14 media platform: streaming apps, wireless casting, built-in speaker, 4K source decoding. One purchase covers bedtime stories and Friday-night films.同一台机器跑完整的 Android 14 平台：流媒体应用、无线投屏、内置扬声器、4K 片源解码。一次购买既是睡前故事机，也是周末家庭影院。
Streaming apps流媒体应用
Netflix · YouTube · Prime Video · Disney+
Android 14Android 14 系统
App store, updates over the air应用商店，OTA 在线升级
Built-in speaker内置扬声器
No extra soundbar to ship不用再配音箱
Wi-Fi 6 · BT 5.4
Casting from phone or tablet手机、平板都能投
PRINT IT FOR REAL
The best one gets printed as a real book画得好的那本，印成真的绘本奖励他
A book the child created can be sent to print and come back as something they can hold and give away. What happened on the screen becomes an object on the shelf.孩子自己创作的绘本，可以挑出精品下单印刷，做成一本能拿在手上、能送人的实体书。屏幕上的成就变成书架上的收藏。
Parents pick and order from the app; hardcover or paperback家长端选书下单，精装 / 平装可选
The child's name on the cover, ready as a birthday or holiday gift封面印孩子的名字，可作生日与节日礼物
Distributors can run their own print fulfilment or leave it to us渠道可自建印刷履约，或由我们代印代发
SPECIFICATIONS
Hardware specifications硬件规格
Chipset主控
Allwinner H723
Wireless无线
Wi-Fi 6 2.4G / 5G + BT 5.4
Operating system系统
Android 14.0
Remote遥控
Bluetooth voice remote蓝牙语音遥控器
Memory存储
1GB RAM + 8GB ROM
Ports接口
HDMI-IN · USB
Brightness / resolution亮度 / 分辨率
160 ANSI · 720P
Casting投屏
Miracast mirror / extend · iOS & AndroidMiracast 镜像 / 扩展双模 · iOS & 安卓
Focus / throw ratio对焦 / 投射比
Manual focus · 0.8:1手动对焦 · 0.8:1
Video decoding视频解码
4K source decoding · 1080P FHD支持 4K 片源解码 · 1080P FHD
Rotation旋转
Built-in 180° two-way rotation机身内置 180° 双向旋转
Power供电

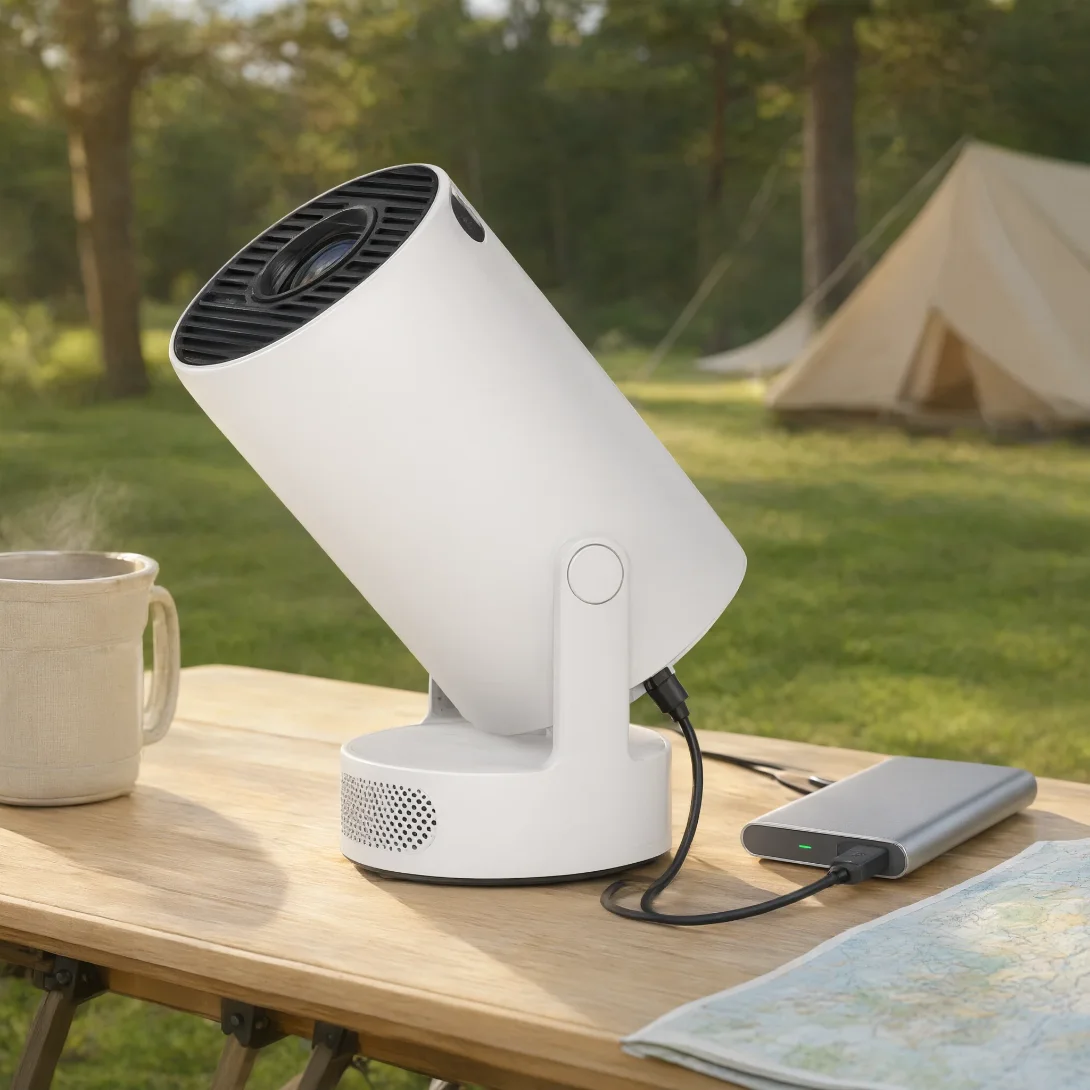

Type-C 15V 2A · works with fast-charge power banksType-C 15V 2A · 可接快充充电宝
Correction / audio校正 / 音响
Auto keystone · built-in speaker自动梯形校正 · 内置扬声器
Dimensions尺寸
φ94.8 × 156.7 mm
Certification认证
CE
FCC
UL
UKCA
2-year warranty2 年质保
BUSINESS MODEL
Hardware is the entry point, content is the repeat purchase硬件是入口，内容是复购
One-time一次性
Hardware sales硬件销售
MOQ 1,000 pcs, 30-day lead time, FOB Shenzhen, gift-box packed. One free book credit per unit.起订 1,000 pcs，30 天交期，FOB 深圳，礼盒出货。每台含 1 本免费绘本额度。
Recurring · digital持续 · 数字
Book generation credits绘本生成点数
We generate activation codes in bulk and hand them over. You load them into your own platform, distribute them and set your own retail price; nothing on our side is needed after delivery.我们批量生成激活码交付给你，你导入自己的平台发放、自己定零售价，交付后不需要我们参与。
Recurring · physical持续 · 实体
Story scratch cards绘本刮刮卡
One card = 10 books. Shoppers buy the card in store, scratch it and activate it themselves. Printing and production included.1 张卡 = 10 本绘本，消费者在门店买卡、刮开自助激活。含印刷生产。
Run either line or both: credits for online channels, scratch cards for physical stores.两条线可任选其一，也可并行——线上渠道走点数，线下门店走刮刮卡。
Shangshulian Technology (Shenzhen) Co., Ltd.商数链科技（深圳）有限公司
AI TOYS SUPPLIER · Custom AI Hardware ODM & OEM
NEXT STEP
A sample first, or a quote?要样机，还是先要报价？
Tell us your target market and expected volume and we will send the matching quote and customisation plan. Samples are in stock and one unit can be ordered at sample price to try.告诉我们目标市场和预计量，我们出对应的报价与定制方案；样机现货，可按样机价先订一台试用。
PRODUCT产品
WonderBear WB-PJ200
Channel product dossier · 2026渠道产品资料 · 2026
